Product introduction：
It has a series of advantages such as simple structure, no moving parts, no noise, and good shock resistance.
1.The driving hot water range is 85-60℃, and the cooling water temperature can reach 7℃;
2.The refrigeration COP can reach 0.5;
3.Omron PLC control, direct or indirect control of cooling water pump, cold water pump and cooling tower fan;
4. One-key power on and off, easy to operate.
5.Exquisite workmanship guarantees the service life of the unit for 23 years
Product introduction：
It has a series of advantages such as simple structure, no moving parts, no noise, and good shock resistance.
1.The driving hot water range is 85-60℃, and the cooling water temperature can reach 7℃;
2.The refrigeration COP can reach 0.5;
3.Omron PLC control, direct or indirect control of cooling water pump, cold water pump and cooling tower fan;
4. One-key power on and off, easy to operate.
5.Exquisite workmanship guarantees the service life of the unit for 23 years
Technical parameters of adsorption hot water refrigeration unit
|
Model number |
SWC-5 |
SWC-10 |
SWC-15 |
SWC-30 |
SWC-50 |
||||
|
Rated cooling capacity kW |
5 |
10 |
15 |
30 |
50 |
||||
|
Hot water |
Hot water flow m³/h |
2.5 |
4.9 |
7.4 |
14.7 |
24.5 |
|||
|
Inlet and outlet temperature |
85/ 80℃ |
||||||||
|
Import and export pipe diameter |
DN25 |
DN40 |
DN50 |
DN50 |
DN65 |
||||
|
Pressure drop MPa |
0.08 |
0.08 |
0.08 |
0.08 |
0.08 |
||||
|
Cold water |
Cold water flow m³/h |
0.86 |
1.72 |
2.58 |
5.16 |
8.6 |
|||
|
Inlet and outlet temperature |
15 / 10℃ |
||||||||
|
Import and export pipe diameter |
DN15 |
DN20 |
DN25 |
DN32 |
DN40 |
||||
|
Pressure drop MPa |
0.05 |
0.05 |
0.05 |
0.06 |
0.06 |
||||
|
Cooling water |
Cooling water flow m³/h |
3.3 |
6.6 |
10 |
20.7 |
34.5 |
|||
|
Inlet and outlet temperature |
30/ 35℃ |
||||||||
|
Import and export pipe diameter |
DN25 |
DN40 |
DN50 |
DN50 |
DN65 |
||||
|
Pressure drop MPa |
0.08 |
0.08 |
0.08 |
0.1 |
0.1 |
||||
|
Dimensions |
length mm |
1800 |
2400 |
2400 |
2500 |
2800 |
|||
|
width mm |
600 |
600 |
700 |
1500 |
1900 |
||||
|
height mm |
1600 |
1800 |
1800 |
2200 |
2500 |
||||
|
power consumption kW |
0.75 |
0.75 |
0.75 |
1.1 |
1.5 |
||||
|
Shipping weight kg |
750 |
1200 |
1800 |
3100 |
5000 |
||||
Note：
1. The working temperature of hot water is more than 60℃.
2. Includes a silica gel water adsorption unit, a computer control box, a vacuum pump, and a cold

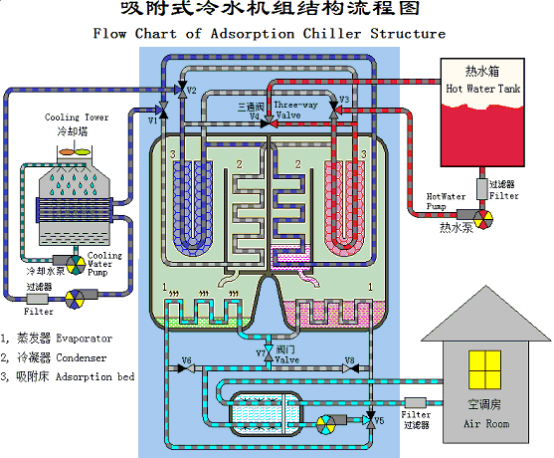

working principle
The adsorption refrigeration unit uses silica gel as the adsorbent and water as the refrigerant. Through the adsorption analysis process of silica gel and water, the purpose of condensation and evaporation refrigeration is achieved. Adsorption refrigeration can use lower temperature industrial waste heat and solar energy as the driving heat source.
It has a series of advantages such as simple structure, no moving parts, no noise, and good shock resistance.
1. The driving hot water range is 85-60℃, and the cooling water temperature can reach 7℃;
2. The refrigeration COP can reach 0.5;
3. Omron PLC control, direct or indirect control of cooling water pump, cold water pump and cooling tower fan;
4. One-key power on and off, easy to operate.
5. Exquisite workmanship guarantees the service life of the unit for 23 years
